Some information about Input Cards

[mvr1918]

Annotation 2020-06-04 115723.png (328.35 KiB) Viewed 1581 times

To further explain the difference between input numbers 33 and 34 vs 69 and 70.

When the Input card is connected to the MASTER card J3 the inputs are numbered from 0 to 35 ( 36 inputs)
When the Input card is connected to the MASTER card 4 the inputs are numbered from 36 to 71 ( 36 inputs)

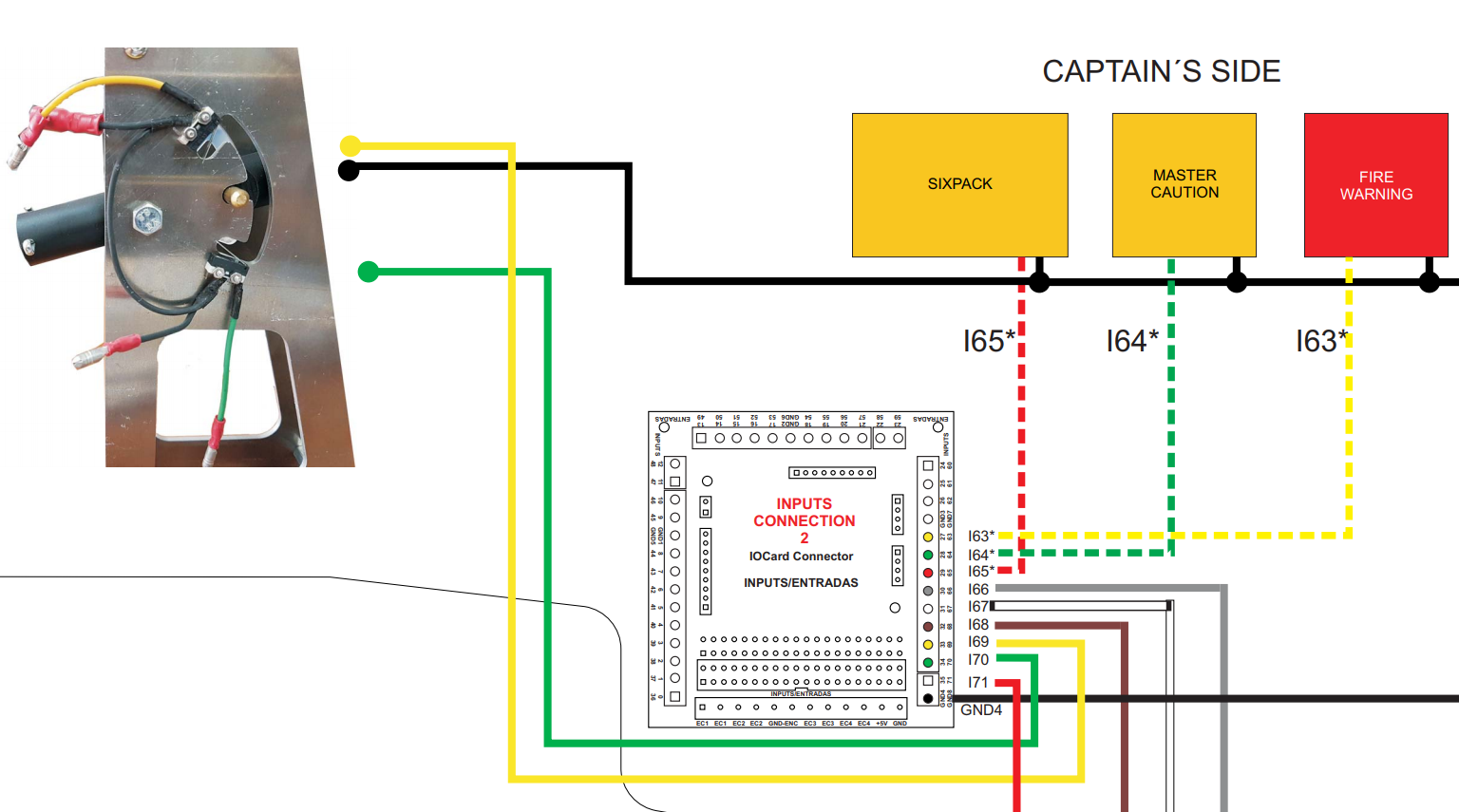

See this image that the wires from the Gear Handler go to input 69 and 70 on the Input Card #2
