no connexion with home cockpit

[catalina69]

Hello everyone, and thank you in advance for the answers I hope to have on this forum.

For information, my PC configuration is:
PREPAR3D Professional 4.5.13.32097 (registered)
FSUIPC 5.153 of December 12, 2019 (registered)
OC4BAV5 RKSOFTWARE 2019 V5.0.0.0 (registered)
SIOC V 7.03B2
WINDOWS 10 Professional 1909 V18363.592 (registered)
MICROSOFT Visual C ++ 2010, 2013, 2015 X64 and X86
PMDG 737-900 NGXu that I just bought, Base package P3D, with update by Operation Center V2 (registered)
The whole is installed in a home cockpit with one hundred percent OPENCOCKPITS hardware.
In PMDG_OPTION.INI, I installed: EnableDataBroadcast = 1
I have several problems with the installation that I normally followed to the letter.
So I launch, P3D which launches with the fighter plane by default, so then I will load the 737-900 NGXu SSW, and there System initialization, starting from 20 and 8, we see furtively that OC4BAV5 launches as well that SIOC, which ranks in the task bar, P3D is on break, I stop the break and end at 0, and there I find myself well on the airport.
From that moment on, I set the Battery switch to ON, and nothing happens. Why?

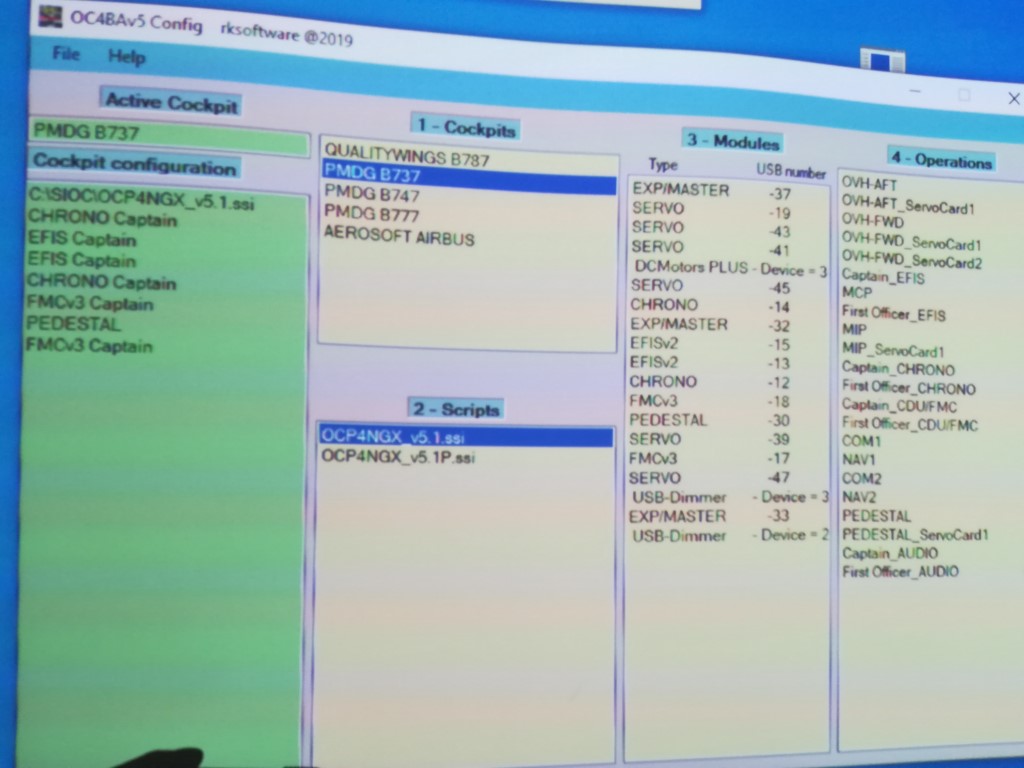

Other questions, when I first launched OC4BAV5, DC Motors exists in module, but not in Operations.
Pedestal servo 1, exists in module and in operations, but when I click on it, it does not appear in Cockpit configuration. Why?
I also have the Throttle which is in module, but not in operations. Why?
On SIOC also worries, but everything in its time.
Lots of things, but I hope to see it work soon.

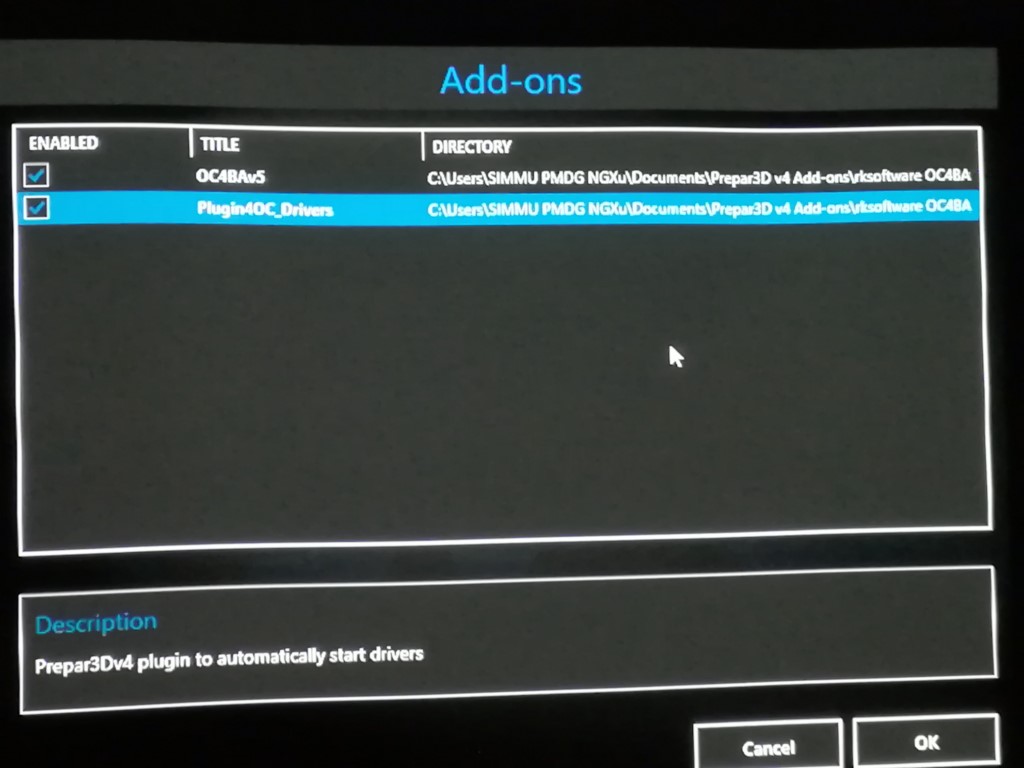

You can see some pictures in attachment.

Best regards

Catalina69




[mvr1918]

The Motor and Dimmer cards are not implemented in the OC4BAv5's autoconfig function and script.


There seems to be a conflict, as your Motor card used IDX 31 as should be assigned to the EXP/MASTER that controls the MIP functions.

You can add in IDxs for Dimmer and Motor in OC4BAv5.ini via OC4BAv5/Config's File menu

Motor for yyy IDX14
Dimmer for xxx IDX27

Tell me what the string name is for the dimmer card in SIOC's Device window, so I can implement it in an update.

You have to manually edit these cards into PMDG B737.ini at the moment.

Then you need to write your own script to be added to the default OC4BAv5 script.

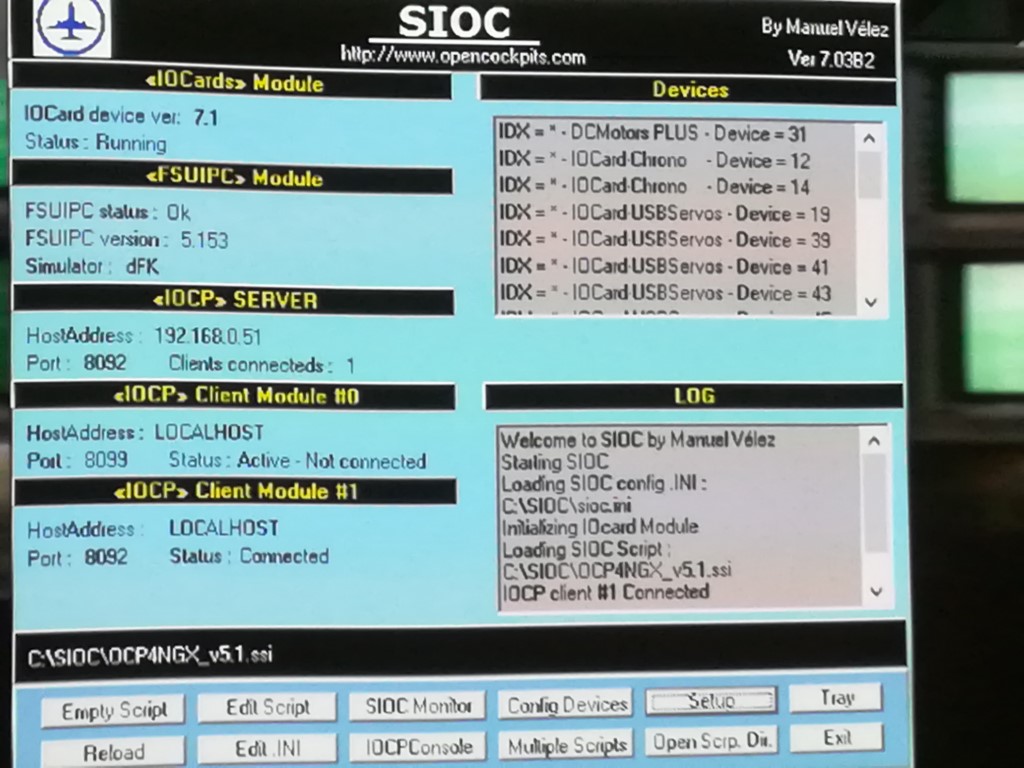

Looking at the SIOC image it looks to me that none of the cards are configured up in SIOC.ini, and therefor not working


Send me the text of both SIOC.ini and PMDG B737.ini

[catalina69]

Hi Roar, thank's to answer
SIOC.INI and PMDG 737.INI

[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay=3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8092
IOCPclient1_disable=no
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]
[PMDG B737]
CONFIG_FILE=C:\SIOC\OCP4NGX_v5.1.ssi
DCMotors PLUS - Device = 31
MASTER=16,16,1,14
MASTER=7,7,1,15
MASTER=7,7,1,13
MASTER=16,16,1,12
MASTER=13,13,1,18
MASTER=32,20,2,30
MASTER=13,13,1,17
USB-Dimmer - Device = 35
USB-Dimmer - Device = 25
MASTER=15,15,1,16


[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay=3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8092
IOCPclient1_disable=no
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]
[PMDG B737]
CONFIG_FILE=C:\SIOC\OCP4NGX_v5.1.ssi
DCMotors PLUS - Device = 31
MASTER=16,16,1,14
MASTER=7,7,1,15
MASTER=7,7,1,13
MASTER=16,16,1,12
MASTER=13,13,1,18
MASTER=32,20,2,30
MASTER=13,13,1,17
USB-Dimmer - Device = 35
USB-Dimmer - Device = 25
MASTER=15,15,1,16

Bests regards

[catalina69]

Hi roar

For information, attached my IDX and USB ports corresponding to the different materials

Name IDX USB
OVH-AFT 30 33
OVH-AFT SERVO 39 39
OVH-FORWARD 30 32
OVH-FWD SERVOS 1 37 43
OVH-FWD SERVOS 2 38 45
CAPTAIN EFIS 7 15
F/O EFIS 17 13
MCP 15 16
MIP 31 (2) 37
MIP SERVOS 36 47
CAPTAIN CHRONO 16 14
F/O CHRONO 26 12
CAPTAIN CDU 13 17
F/O CDU 23 18
PEDESTAL 32 30
STEERING TILLER ? 41 CARTE SERVO OPENCOCPITS
THROTTLE AVEC CARTE DC MOTOR + ? 31




For information, PANEL.CFG with good values for CDU for my home cockpit

/////////////////////////////////////////////////////////
//
//
// PMDG 737NG3
//
//
///////////////////////////////////////////////////////

// ASPECT RATIO 16:9


[Window Titles]
window00=Main Panel
window01=CDU (Left)
window02=CDU (Right)
window03=AFDS Panel
window04=Radios
window05=Zoomed Left Outboard DU
window06=Zoomed Left Inboard DU
window07=Zoomed Upper DU
window08=Zoomed Lower DU
window09=Zoomed Right Inboard DU
window10=Zoomed Right Outboard DU
window11=Left EFB
window12=Right EFB
window13=Minipanel
window14=Light Sensor


[VIEWS]
VIEW_FORWARD_WINDOWS=MAIN_PANEL,MINIPANEL
VIEW_FORWARD_DIR=10.000, 0.000, 0.000
VIEW_FORWARD_ZOOM=0.8



//--------------------------------------------------------

//
// Main panel
//
[Window00]
Background_color=0,0,0
size_mm=1920, 1200
position=4
visible=0
nomenu=1
ident=MAIN_PANEL


//
// CDU (Left)
//
[Window01]
BACKGROUND_COLOR=30,30,30
size_mm=385,600
window_size=0.18047, 0.5
position=8
visible=0
ident=401
zorder=99

gauge00=PMDG_737NGXu!CDU, -90,-110,570,1710,L #0

//
// CDU (Right)
//
[Window02]
BACKGROUND_COLOR=30,30,30
size_mm=385,600
window_size=0.18047, 0.5
position=2
visible=0
ident=402
zorder=99

gauge00=PMDG_737NGXu!CDU, -90,-110,570,1710,L #0


//
// AFDS (MCP and EFIS)
//
[Window03]
BACKGROUND_COLOR=30,30,30
size_mm=1669, 165
window_size=0.68234, 0.1375
position=5
visible=0
ident=403
zorder=83

gauge00=PMDG_737NGXu!EFIS, 0, 0, 285, 165, L
gauge01=PMDG_737NGXu!MCP, 285, 0, 1099, 165
gauge02=PMDG_737NGXu!EFIS, 1384, 0, 285, 165, R


//
// Radios
//
[Window04]
BACKGROUND_COLOR=30,30,30
size_mm=363,1139
window_size=0.17016, 0.94917
position=6
visible=0
ident=421
zorder=89

gauge00=PMDG_737NGXu!COMMSRadioPanel, 0, 0, 363, 181
gauge01=PMDG_737NGXu!NAVRadioPanel, 0, 181, 363, 156
gauge02=PMDG_737NGXu!AudioControl, 0, 337, 363, 272
gauge03=PMDG_737NGXu!ADFRadioPanel, 0, 609, 363, 158
gauge04=PMDG_737NGXu!SELCALPanel, 0, 767, 363, 81
gauge05=PMDG_737NGXu!Transponder, 0, 848, 363, 134
gauge06=PMDG_737NGXu!WXR, 0, 982, 363, 157


//
// Zoomed Left Outboard DU
//
[Window05]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=3
visible=0
ident=410
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 LEFT_OUTBD #11 ZOOM


//
// Zoomed Left Inboard DU
//
[Window06]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=4
visible=0
ident=411
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 LEFT_INBD #12 ZOOM


//
// Zoomed Upper DU
//
[Window07]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=5
visible=0
ident=412
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 UPPER #13 ZOOM


//
// Zoomed Lower DU
//
[Window08]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=8
visible=0
ident=413
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 LOWER #14 ZOOM


//
// Zoomed Right Inboard DU
//
[Window09]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=1
visible=0
ident=414
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 RIGHT_INBD #15 ZOOM


//
// Zoomed Right Outboard DU
//
[Window10]
BACKGROUND_COLOR=10, 10, 10
size_mm=555, 555
window_size=0.26015, 0.4625
position=2
visible=0
ident=415
zorder=95

gauge00=PMDG_737NGXu!DU, 10, 10, 535, 535, 1 RIGHT_OUTBD #16 ZOOM


//
// Left EFB
//
[Window11]
BACKGROUND_COLOR=10,10,10
size_mm=754, 900
window_size=0.35343, 0.75
position=3
visible=0
ident=423
zorder=95

gauge00=PMDG_737NGXu!EFB, 0, 0, 754, 900, L
gauge01=efb!pmdg_EFBVideo_00, 105, 46, 619, 842

//
// Right EFB
//
[Window12]
BACKGROUND_COLOR=10,10,10
size_mm=754, 900
window_size=0.35343, 0.75
position=5
visible=0
ident=424
zorder=95

gauge00=PMDG_737NGXu!EFB, 0, 0, 754, 900, R
gauge01=efb!pmdg_EFBVideo_10, 105, 46, 619, 842


//
// Mini Panel
//
[Window13]
Background_color=0,0,0
size_mm=1600,1200
position=4
visible=1
nomenu=1
ident=MINIPANEL
alpha_blend=1.0

gauge00=hud!hud, 190, 395, 1225, 894


//
// Light Sensor
//
[Window14]
BACKGROUND_COLOR=255,255,255
size_mm=4, 4
position=0
nomenu=1
visible=1
ident=499
zorder=99
alpha_blend=0.0

gauge00=PMDG_737NGXu!LightSensor, 0, 0, 4, 4


//-----------------------------------------------------


///////////////////////////////////////////////////////
/////////////// VIRTUAL COCKPIT ///////////////////
///////////////////////////////////////////////////////

///////////////////////////////////////////////////////
// VC SECTION 1
// Overhead Annunciators and Displays
// MCP Annunciators and Displays
///////////////////////////////////////////////////////

[VCockpit01]
size_mm=1024,1024
pixel_size=1024,1024
texture=$GaugeOne
background_color=0,0,0

gauge00=PMDG_737NGXu!VCAnnunciations_0, 0, 0, 1024, 641, VC
gauge01=PMDG_737NGXu!VCAnnunciations_1, 0, 640, 927, 244, VC SIDE
gauge02=PMDG_737NGXu!VCAnnunciations_2, 0, 884, 972, 140, VC SIDE
gauge03=hud!pmdg_737_ng, 0, 0, 0, 0



//////////////////////////////////////////////////////
// VC SECTION 2
// Main Panel DUs
///////////////////////////////////////////////////////

[VCockpit02]
size_mm=1024,1024
pixel_size=1024,1024
texture=$GaugeThree
background_color=0,0,0

gauge00=PMDG_737NGXu!DU, 10, 10, 492, 492, 2 LEFT_OUTBD #21 VC
gauge01=PMDG_737NGXu!DU, 522, 10, 492, 492, 2 LEFT_INBD #22 VC
gauge03=PMDG_737NGXu!DU, 10, 522, 492, 492, 2 RIGHT_INBD #25 VC
gauge04=PMDG_737NGXu!DU, 522, 522, 492, 492, 2 RIGHT_OUTBD #26 VC



//////////////////////////////////////////////////////
// VC SECTION 3
// Upper/Lower Eicas - CDUs - Main Panel Annunciators - CDU button lighting - Main Panel

Instrument Lighting
///////////////////////////////////////////////////////

[VCockpit03]
size_mm=1024,1024
pixel_size=1024,1024
texture=$GaugeFour
background_color=0,0,0

gauge00=PMDG_737NGXu!DU, 5, 5, 490,490, 2 UPPER #23 VC
gauge01=PMDG_737NGXu!DU, 529, 5, 490, 490, 2 LOWER #24 VC
gauge02=PMDG_737NGXu!CDU_Screen, 0, 741, 333, 282, L #3 VC
gauge03=PMDG_737NGXu!CDU_Screen, 334, 741, 333, 282, R #4 VC
gauge04=PMDG_737NGXu!VCAnnunciations_3, 0, 501,1024, 96, VC
gauge05=PMDG_737NGXu!VCAnnunciations_5, 668, 741, 356, 283, VC
gauge06=PMDG_737NGXu!VCAnnunciations_7, 0, 597, 1024,145, VC




//////////////////////////////////////////////////////
// VC SECTION 4
// Radio knob backlighting - Radio annunciators - Radio Displays
///////////////////////////////////////////////////////

[VCockpit04]
size_mm=1024,512
pixel_size=1024,512
texture=$GaugeSix
background_color=0,0,0

gauge00=PMDG_737NGXu!VCAnnunciations_4, 0, 0, 1024, 512, VC


//////////////////////////////////////////////////////
// VC SECTION 5
// Chronometers
///////////////////////////////////////////////////////

[VCockpit05]
size_mm=512,256
pixel_size=512,256
texture=$GaugeSeven
background_color=0,0,0

gauge00=PMDG_737NGXu!Chrono_Screen, 0, 0, 256, 256, L #3 VC
gauge01=PMDG_737NGXu!Chrono_Screen, 256, 0, 256, 256, R #4 VC



//////////////////////////////////////////////////////
// VC SECTION 6
// Fire Panel
///////////////////////////////////////////////////////

[VCockpit06]
size_mm=1024,1024
pixel_size=1024,1024
texture=$FireFlood
background_color=0,0,0

gauge00=PMDG_737NGXu!VCAnnunciations_6, 0, 768, 512, 256, VC


//////////////////////////////////////////////////////
// VC SECTION 7
// HUD
///////////////////////////////////////////////////////

[VCockpit07]
size_mm=1024,1024
pixel_size=1024,1024
texture=$GaugeNine
background_color=0,0,0

gauge00=hud!hud, 0, 0, 1024, 748, VC


//////////////////////////////////////////////////////
// VC SECTION 8
// OVHD Backlighting
///////////////////////////////////////////////////////

[VCockpit08]
size_mm=32, 32
pixel_size=32, 32
texture=$GaugeTen
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklight, 0, 0, 32, 32, #0 VC

//////////////////////////////////////////////////////
// VC SECTION 09
// AFDS Backlighting
///////////////////////////////////////////////////////

[VCockpit09]
size_mm=128, 128
pixel_size=128, 128
texture=$GaugeEleven
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklightAFDS, 0, 0, 128, 128, VC

//////////////////////////////////////////////////////
// VC SECTION 10
// Main Panel Backlighting Capt
///////////////////////////////////////////////////////

[VCockpit10]
size_mm=32, 32
pixel_size=32, 32
texture=$GaugeTwelve
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklight, 0, 0, 32, 32, #1 VC

//////////////////////////////////////////////////////
// VC SECTION 11
// Main Panel Backlighting FO
///////////////////////////////////////////////////////

[VCockpit11]
size_mm=32, 32
pixel_size=32, 32
texture=$GaugeThirteen
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklight, 0, 0, 32, 32, #2 VC

//////////////////////////////////////////////////////
// VC SECTION 12
// Pedestal Backlighting
///////////////////////////////////////////////////////

[VCockpit12]
size_mm=32, 32
pixel_size=32, 32
texture=$GaugeFourteen
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklight, 0, 0, 32, 32, #4 VC

//////////////////////////////////////////////////////
// VC SECTION 13
// CB Panel Text Light Right
///////////////////////////////////////////////////////
[VCockpit13]
size_mm=256, 256
pixel_size=256, 256
texture=$CBTextR
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_23, 0, 0, 256, 256, VC

//////////////////////////////////////////////////////
// VC SECTION 14
// Overhead Misc Panel Backlighting
///////////////////////////////////////////////////////

[VCockpit14]
size_mm=128,64
pixel_size=128,64
texture=$GaugeSixteen
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_2, 0, 0, 128, 64, VC

//////////////////////////////////////////////////////
// VC SECTION 15
// ISFD Display
///////////////////////////////////////////////////////

[VCockpit15]
size_mm=256, 256
pixel_size=256, 256
texture=$GaugeSeventeen
background_color=0,0,0

gauge00=PMDG_737NGXu!ISFD, 0, 0, 256, 256, VC



///////////////////////////////////////////////////////
// VC SECTION 16
// Main Panel backlight for F/O side
///////////////////////////////////////////////////////

[VCockpit16]
size_mm=512,512
pixel_size=512,512
texture=$GaugeTwentyTwo
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_3, 0, 0, 512, 512, VC




//////////////////////////////////////////////////////
// VC SECTION 17
// Compass Light
///////////////////////////////////////////////////////
[VCockpit17]
size_mm=512,32
pixel_size=512,32
texture=$compass
background_color=0,0,0

gauge00=PMDG_737NGXu!VCBacklight, 0, 0, 512, 32, #7 VC




//////////////////////////////////////////////////////
// VC SECTION 18
// ACP Volume Knobs
///////////////////////////////////////////////////////

[VCockpit18]
size_mm=512,512
pixel_size=512,512
texture=$Volume
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_16, 0, 0, 128, 512, VC
gauge01=PMDG_737NGXu!VCFlood_17, 128, 0, 256, 512, VC

/////////////////////////////////////////////////////
// VC SECTION 19
// 3D landing lights interface
///////////////////////////////////////////////////////

[VCockpit19]
size_mm=256,256
pixel_size=256,256
texture=$LightLand
background_color=0,0,0

gauge00=PMDG_737NGXu!VC_LightLand, 0,0,256,256


//////////////////////////////////////////////////////
// VC SECTION 20
// Brake Press
///////////////////////////////////////////////////////

[VCockpit20]
size_mm=256,256
pixel_size=256,256
texture=$Brake
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_18, 0,0,256,256, VC




//////////////////////////////////////////////////////
// VC SECTION 21
// Cabin Lighting
///////////////////////////////////////////////////////

[VCockpit21]
size_mm=1024, 1024
pixel_size=1024, 1024
texture=$NGXCabinLight
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_20, 0,0,1024,1024, VC SIDE


//////////////////////////////////////////////////////
// VC SECTION 22
// Third Party Addon
///////////////////////////////////////////////////////

[VCockpit22]
size_mm=8,8
pixel_size=8,8
texture=$ThirdParty
background_color=0,0,0



//////////////////////////////////////////////////////
// VC SECTION 23
// CB Panel Text Light Left
///////////////////////////////////////////////////////
[VCockpit23]
size_mm=256, 256
pixel_size=256, 256
texture=$CBTextL
background_color=0,0,0
gauge00=PMDG_737NGXu!VCFlood_22, 0, 0, 256, 256, VC

//////////////////////////////////////////////////////
// VC SECTION 24
// EFB
///////////////////////////////////////////////////////

[VCockpit24]
size_mm=2048, 2048
pixel_size=2048, 2048
texture=$EFB
background_color=0,0,0

gauge00=PMDG_737NGXu!EFB_Screen, 0, 25, 1019, 1284, L VC
gauge01=efb!pmdg_EFBVideo_01, 0, 0, 1044, 1372
gauge02=PMDG_737NGXu!EFB_Screen, 1020, 25, 1019, 1284, R VC
gauge03=efb!pmdg_EFBVideo_11, 1028, 0, 1044, 1372


///////////////////////////////////////////////////////
// VC SECTION 25
// RainMaker
///////////////////////////////////////////////////////

[VCockpit25]
size_mm=2, 2
pixel_size=2,2
texture=$RainMaker
background_color=0,0,0

gauge00=PMDG_RAINMAKER!Main, 0,0,1,1
gauge01=pmdg!pmdg_747QOTSII_ns , 0,0,1,1
gauge02=PMDG_GFO!Main, 0,0,1,1

//////////////////////////////////////////////////////
// VC SECTION 26
// Hot Brakes
///////////////////////////////////////////////////////

[VCockpit26]
size_mm=1024, 1024
pixel_size=1024, 1024
texture=$MLGHB
background_color=0,0,0

gauge00=PMDG_737NGXu!BrakesHeat, 0, 0, 1024, 1024, EXT

//////////////////////////////////////////////////////
// VC SECTION 27
// Cockpit light source
///////////////////////////////////////////////////////

[VCockpit27]
size_mm=512, 512
pixel_size=512, 512
texture=$lightsource
background_color=0,0,0

gauge00=PMDG_737NGXu!VCFlood_24_25, 0, 338, 512, 32, #24 VC
gauge01=PMDG_737NGXu!VCFlood_24_25, 0, 279, 512, 32, #25 VC
gauge02=PMDG_737NGXu!VCFlood_26, 375, 376, 128, 119, VC
gauge03=PMDG_737NGXu!VCFlood_27_28, 211, 374, 75, 117, #27 VC
gauge04=PMDG_737NGXu!VCFlood_27_28, 292, 374, 75, 117, #28 VC
gauge05=PMDG_737NGXu!VCFlood_29_30, 205, 9, 69, 69, #29 VC
gauge06=PMDG_737NGXu!VCFlood_29_30, 284, 9, 69, 69, #30 VC
gauge07=PMDG_737NGXu!VCFlood_31_32, 2, 105, 128, 128, #31 VC
gauge08=PMDG_737NGXu!VCFlood_31_32, 140, 105, 128, 128, #32 VC
gauge09=PMDG_737NGXu!VCFlood_33_34, 112, 380, 89, 95, #33 VC
gauge10=PMDG_737NGXu!VCFlood_33_34, 9, 380, 89, 95, #34 VC
gauge11=PMDG_737NGXu!VCDomeSourceCapt, 0, 0, 92,92, VC
gauge12=PMDG_737NGXu!VCDomeSourceFO, 94, 0, 90, 90, VC
gauge13=PMDG_737NGXu!VCFlood_35, 280, 114, 128,119, VC
gauge14=PMDG_737NGXu!VCFlood_36, 432,162,69,69, VC




///////////////////////////////////////////////////////
///////////////////END VC SECTIONS/////////////////////
///////////////////////////////////////////////////////



[Default View]
X=0
Y=0
SIZE_X=8192
SIZE_Y=3500

[Color]
Day=255,255,255
Night=255,255,255

Bests regards

catalina69

[mvr1918]

Hi Roar, thank's to answer
SIOC.INI and PMDG 737.INI

[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay=3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8092
IOCPclient1_disable=no
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]
[PMDG B737]
CONFIG_FILE=C:\SIOC\OCP4NGX_v5.1.ssi
DCMotors PLUS - Device = 31
MASTER=16,16,1,14
MASTER=7,7,1,15
MASTER=7,7,1,13
MASTER=16,16,1,12
MASTER=13,13,1,18
MASTER=32,20,2,30
MASTER=13,13,1,17
USB-Dimmer - Device = 35
USB-Dimmer - Device = 25
MASTER=15,15,1,16


[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay=3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8092
IOCPclient1_disable=no
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]
[PMDG B737]
CONFIG_FILE=C:\SIOC\OCP4NGX_v5.1.ssi
DCMotors PLUS - Device = 31
MASTER=16,16,1,14
MASTER=7,7,1,15
MASTER=7,7,1,13
MASTER=16,16,1,12
MASTER=13,13,1,18
MASTER=32,20,2,30
MASTER=13,13,1,17
USB-Dimmer - Device = 35
USB-Dimmer - Device = 25
MASTER=15,15,1,16

Here are the last lines of both the PMDG B737.ini and SIOC.ini files configured for your hardware:

If you change the USB connection to any modules, remember also to change the last digit here.

MASTER 14,14,1,31
MASTER=16,16,1,14
MASTER=7,7,1,15
MASTER=17,7,1,13
MASTER=16,16,1,12
MASTER=13,13,1,18
MASTER=32,20,2,30
MASTER=13,13,1,17
MASTER=27,17,1,35
MASTER=37,17,1,25
MASTER=15,15,1,16
