SIOC FSX/XP11 [SOLVED]

[Wardie]

Hello, I already have SIOC installed on my C:\ drive which uses your program (OCP4NGX_v4.5.ssi) for FSX. Can I use the same SIOC installation/folder for my X-Plane 11 SIOC installation, and does it therefore follow that I don't have to install SIOC for a second time?

One other question - would it be okay to have C:\XP11 and C:\SIOC or do they have to be under one main folder?

One last question - when it asks for your X-Plane folder do you point it to the main X-Plane folder (C:\XP11) or to the C:\XP11\Resources\plugins folder? Sorry for all the questions, I have your program working brilliantly for FSX but I am struggling with XP. Thanks in advance.

[mvr1918]

You only need ONE SIOC installed.
XP11 and SIOC folder locations are not dependent of each other
XPlane main folder is C:\XP11 in your case

[Wardie]

Thanks for your quick reply! I am away for a few days, will try it as soon as I get back.

[Wardie]

I have followed the instructions and my Com radio and Nav1 and Nav2 radios work perfectly. My Opencockpits MCP, EFIS, ADF and Transponder do not work..... when I look under SIOC monitor none of these devices are linked, but the Com and Nav radios are all linked. Any ideas please?

[mvr1918]

Send an image of the SIOC Device window and the text in XPLANE.ini

Also confirm that you do not use SIOC v6, but SIOC v5.

[Wardie]

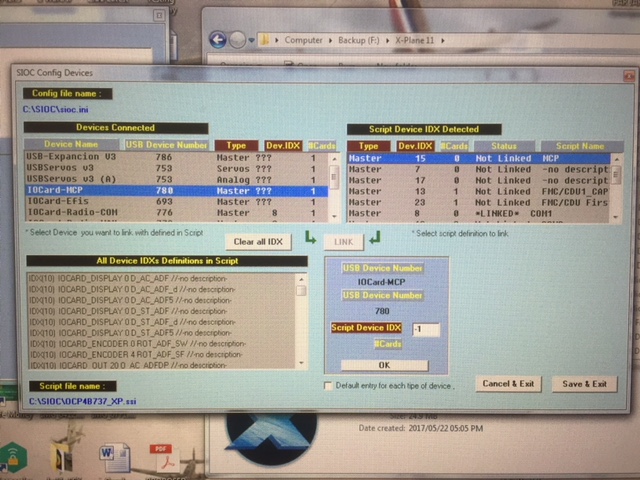

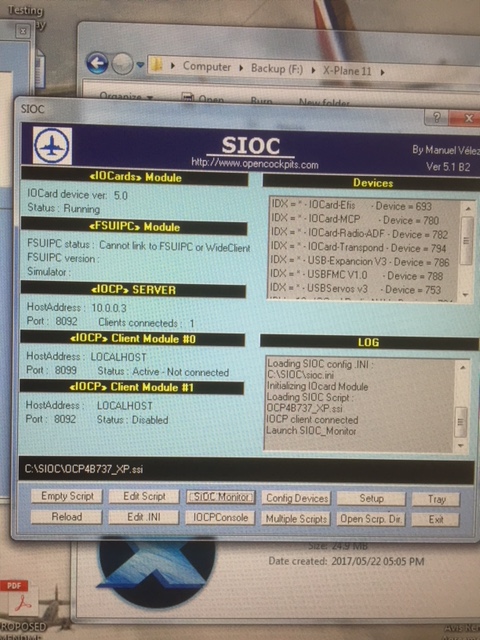

I am using SIOC 5.1B2 and not V6. Please see attached pictures, thanks for your help.

[Wardie]


[Wardie]


[Wardie]

I've just corrected the EFIS line in XPLANE.ini to read 7,7,1,693.........EFIS is now working! Just the MCP, ADF and Transponder not working.

[mvr1918]

Switch the last numbers 794 and 782


MASTER=10 is ADF
MASTER=11 is ATC

I think there is a misprint in the doc

ADF works only for IXEG, not for Zibo
