OVH-FWD B737

[B737_hb9rik]

Overhead Panel B737 V2 from OC works partly

I use FSX Steam Edition with PMDG, SIOC and OC4BAv4

With the testprogram from SIOC works all inputs and outputs also all servos very well.
Lamp test also operates.
All button (Attend, GRD Call, Voice Recorder, Test, Erase, Maint) operates very well.

But all switch works with the testprogram however not with the simulation FSX.
Why works all button and no switches?

what is wrong? What can I do?

thanks for help

[mvr1918]

Have you checked in SIOC/IOCPConsole if any of the switches are detected. Turn LOG ON and do some testing.

Also check in SIOCMonitor that the switch input number is the same as in the script.


You can send me a list of the numbers and I can check.


I have the OVHv2 also and it works OK .

[B737_hb9rik]

Dear mvr1918,

I checked all Inputs. In the Console are not the same Input numbers as in the Monitor.

example Monitor Console
ATTEND 99 2592
GRD_CALL 100 2652

enclosed a list of numbers (Console)

91=0 - sNO_SMOKE_OFF
2692=1 - NO_S_L_SW
92=1 - sNO_SMOKE_ON
2692=2 - NO_S_L_SW
93=0 - sFAST_SEAT_OFF
2638=1 - FAST_B_LI_SW
94=1 - sFAST_SEAT_ON
2638=2 - FAST_B_LI_SW
2592=1 - bATTEND
2592=0 - bATTEND
2652=1 - bGRD_CALL
2652=0 - bGRD_CALL
128=0 - sENG1_S_OFF
127=1 - sENG1_S_GRD
2675=0 - ENGINE1_SW
127=0 - sENG1_S_GRD
128=1 - sENG1_S_OFF
2675=1 - ENGINE1_SW
128=0 - sENG1_S_OFF
129=1 - sENG1_S_CONT
2675=2 - ENGINE1_SW
129=0 - sENG1_S_CONT
130=1 - sENG1_S_FLT
2675=3 - ENGINE1_SW
134=1 - sENG2_S_GRD
2681=0 - ENGINE2_SW
135=0 - sENG2_S_OFF
134=0 - sENG2_S_GRD
135=1 - sENG2_S_OFF
2681=1 - ENGINE2_SW
135=0 - sENG2_S_OFF
136=1 - ENG2_S_CONT
2681=2 - ENGINE2_SW
136=0 - ENG2_S_CONT
137=1 - ENG2_S_FLT
2681=3 - ENGINE2_SW
124=0 - sAPU_OFF
2671=1 - APU_START_SW
125=1 - sAPU_START
2671=2 - APU_START_SW
125=0 - sAPU_START
2671=1 - APU_START_SW
124=1 - sAPU_OFF
2671=0 - APU_START_SW

I think something is wrong?!

Thanks
Ulrich

[mvr1918]

It looks OK to me.

But, you didn't send any of the SIOC Monitor switch numbers.


You have to compare those numbers (from SIOC Monitor) with the numbers you see for the same switches in Console,

[B737_hb9rik]

enclosed a list of numbers of Monitor and Console

Monitor Console
91 91=0 - sNO_SMOKE_OFF
2692=1 - NO_S_L_SW
92 92=1 - sNO_SMOKE_ON
2692=2 - NO_S_L_SW
93 93=0 - sFAST_SEAT_OFF
2638=1 - FAST_B_LI_SW
94 94=1 - sFAST_SEAT_ON
2638=2 - FAST_B_LI_SW
99 2592=1 - bATTEND
2592=0 - bATTEND
100 2652=1 - bGRD_CALL
2652=0 - bGRD_CALL
128=0 - sENG1_S_OFF
9 127=1 - sENG1_S_GRD
2675=0 - ENGINE1_SW
127=0 - sENG1_S_GRD
10 128=1 - sENG1_S_OFF
2675=1 - ENGINE1_SW
128=0 - sENG1_S_OFF
11 129=1 - sENG1_S_CONT
2675=2 - ENGINE1_SW
129=0 - sENG1_S_CONT
12 130=1 - sENG1_S_FLT
2675=3 - ENGINE1_SW
13 134=1 - sENG2_S_GRD
2681=0 - ENGINE2_SW
135=0 - sENG2_S_OFF
134=0 - sENG2_S_GRD
14 135=1 - sENG2_S_OFF
2681=1 - ENGINE2_SW
135=0 - sENG2_S_OFF
15 136=1 - ENG2_S_CONT
2681=2 - ENGINE2_SW
136=0 - ENG2_S_CONT
16 137=1 - ENG2_S_FLT
2681=3 - ENGINE2_SW
124=0 - sAPU_OFF
2671=1 - APU_START_SW
8 125=1 - sAPU_START
2671=2 - APU_START_SW
125=0 - sAPU_START
2671=1 - APU_START_SW
7 124=1 - sAPU_OFF
2671=0 - APU_START_SW
25 131=1 - sENG_IGN_L
24 132=1 - sENG_IGN_R
Seite

Regards
Ulrich

[mvr1918]

As the numbers you have in SIOC Monitor are the numbers used in your OVH-FWD and the numbers in Console is the numbers used in the script, you have to change the number in the script so they math the numbers
in the your OVH-FWD.


See the video

How to modify OC4BAv4's standard Opencockpits script here http://www.flightsim4fun.com/video.html

[B737_hb9rik]

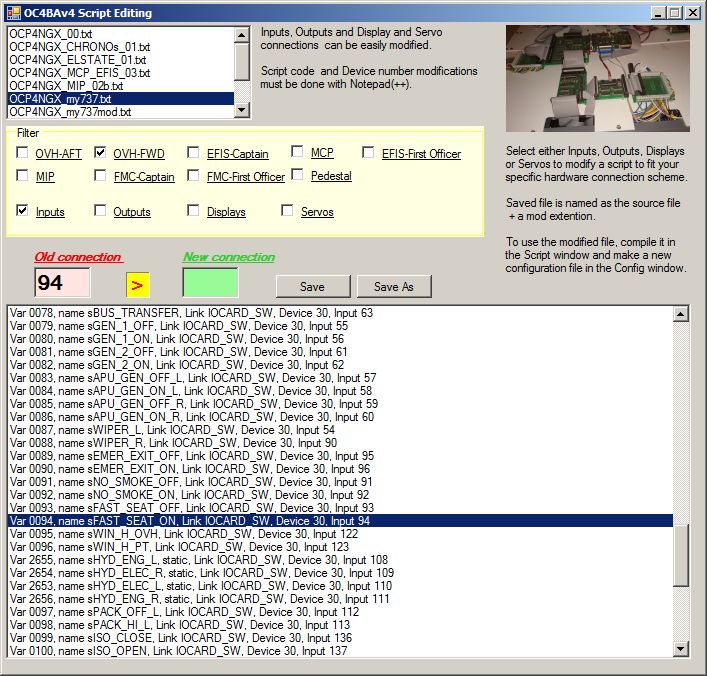

Hi,
I tested the numbers again;

Var 0091, name sNO_SMOKE_OFF, Link IOCARD_SW, Device 30, Input 91
Var 0092, name sNO_SMOKE_ON, Link IOCARD_SW, Device 30, Input 92
Var 0093, name sFAST_SEAT_OFF, Link IOCARD_SW, Device 30, Input 93
Var 0094, name sFAST_SEAT_ON, Link IOCARD_SW, Device 30, Input 94

same numbers in Var an Input, 91 - 94, => no funktion

Var 2592, name bATTEND, static, Link IOCARD_SW, Device 30, Input 99
Var 2652, name bGRD_CALL, static, Link IOCARD_SW, Device 30, Input 100

different numbers; ATTEND and GRD_CLL => works very well, it is OK


Var 0124, name sAPU_OFF, Link IOCARD_SW, Device 30, Input 7
Var 0125, name sAPU_START, Link IOCARD_SW, Device 30, Input 8

different numbers; => no Funktion!


How should be the correct numbers for the OVH-FWD?
I don't understand what is wrong!

Thanks
Ulrich

[mvr1918]

If the numbers are different in Monitor and Console you change it Script Edit

If they are the same , no need to change


Have you check in IOCPConsole to see what is happening when you OCP4NGX is running and you switch FAST_SEAT_ON on-off?

I need that info to help you further.
