OC4BA v2 shows up in FSX Add-ons but it doesn't start

[B777LR]

Hello

I'm using FSX with PMDG 737ngx and an OpenCockpits MCP v3 and EFIS.
I installed OC4BA v2 into my FSX folder and copied the necessary text into the exe.xml file.
Direction of FSX: D:\Microsoft Games\Microsoft Flight Simulator X
Direction of SIOC: D:\Microsoft Games\Microsoft Flight Simulator X\SIOC

<?xml version="1.0" encoding="windows-1252"?>
<SimBase.Document Type="Launch" version="1,0">
<Descr>Launch</Descr>
<Filename>exe.xml</Filename>
<Disabled>False</Disabled>
<Launch.ManualLoad>False</Launch.ManualLoad>
<Launch.Addon>
<Name>Couatl</Name>
<Disabled>False</Disabled>
<ManualLoad>False</ManualLoad>
<Path>fsdreamteam\couatl\couatl.exe</Path>
</Launch.Addon>
<Launch.Addon>
<Name>OC4BA Addon</Name>
<Disabled>false</Disabled>
<Path>\SIOC\OC4BA_Menu.exe</Path>
</Launch.Addon>
</SimBase.Document>

This is my sioc.ini
[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay= 3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8099
IOCPclient1_disable=yes
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]

and this my OC4BA.ini
[AIRCRAFT]
PMDG B737
PMDG B747
PMDG B777
[IDX]
OVH IDX30m2
OVH_Servo1 IDX36
OVH_Servo2 IDX37
EFIS_Captain IDX7
EFIS_FO IDX17
MIP IDX31m1
MIP_Servo1 IDX38
CHRONO_Captain IDX16
CHRONO_FO IDX26
FMC_Captain IDX13
FMC_FO IDX23
COM1 IDX8
NAV1 IDX9
COM2 IDX18
NAV2 IDX19

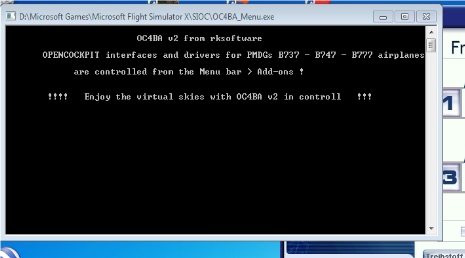

now when I start my FSX this screen opens (see start fsx.jpg)

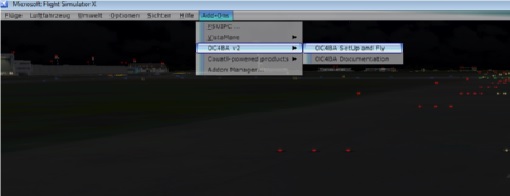

I choose a pmdg 737ngx aircraft and start the flight. In the Add-ons i see OC4BA but it does not open when I click on it.

How can I solve this problem?

Thanks in advance

Best regards
Jens

[mvr1918]

Hi Jens

With your FSX.exe in D:\Microsoft Games\Microsoft Flight Simulator X

you should install SIOC programs and OC4BA programs to the following folder:


D:\Microsoft Games\SIOC.

That is one level up from where you have installed it now. Sioc and OC4BA files MUST be installed to a SIOC folder that is located under the same folder as FSX is located


This is the text in the documentation:


In order to make life easier for both users of OC4BA v2 and rksoftware your SIOC software downloaded from www.opencockpits.com MUST be installed to the same drive/folder as your flight simulator main folder is located.
Examples: If your flight simulator main folder is:
C:/FSX - then your SIOC folder should be C:/SIOC. Always on same level on same drive!
D:/My FlightSims/FSX – then your SIOC folder should be D:/My FlightSims/SIOC
This is my PC setup
In short: Your FSX folder can be located anywhere as long as your SIOC folder is in the same parent Drive/Folder.

!!!!! If this is not done correctly, OC4BA v2 will NOT work !!!!!!
If your SIOC folder is in another location vs FSX than explained above, please uninstall SIOC and re-install to correct location versus your flight simulator main folder as explained above, before you start installing OC4BA V2


Therefore:
Uninstall OC4BA and SIOC and reinstall to correct folder.

Rhs Roar
