Oi4FS_p737CDU is released

[mvr1918]

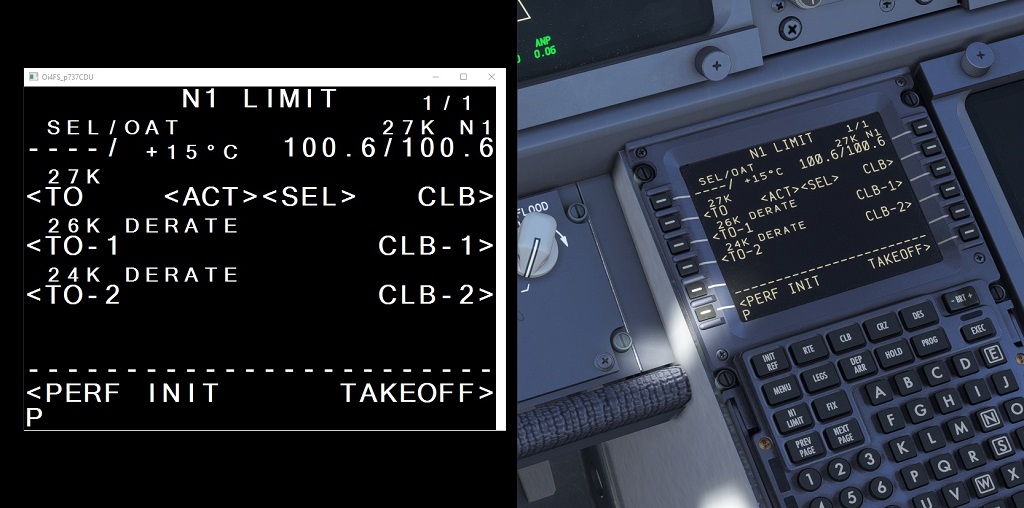

Screenshot 2022-05-15 124354.jpg (148.38 KiB) Viewed 4523 times

PMDG 737 for MSFS does not support pop out windows at the moment and a fix must come from PMDG and ASOBO.

rksoftware will though soon release the new Oi4FS-p737CDU software to let user add the PMDG 737 for MSFS CDU screens to their Opencockpits CDU/FMC hardware modules. No need to scream about pop outs anymore for CDU/FMC owners.

It is now implemeted in the OIPMDG737 add-on driver software.

[mvr1918]

The Oi4FS_p737CDU v1.0 is now released and available.

As we all know the PMDG 737 for MSFS does not support pop out windows so the virtual screen of the CDUs/FMCs can be attached to the Opencockpits CDU/FMC hardware module.

With Oi4FS_p737CDU that issue is now solved.

Oi4FS_p737CDV v1.0 only support the Capatain's CDU/FCM. Support for the FO's CDU/FMC will be released next week and will be delivered free to users of the Oi4FS_p737CDU.

The Oi4FS_p737CDU is developed as an external program to the PMDG 737 for MSFS and has little to no FPS impact.

How to get your copy of the Oi4FS_p737CDU?

It is now implemeted in the OIPMDG737 add-on driver software.

[Cmte. Pena]

Donation was done. 7,00
Waiting for the driver.

[mvr1918]

A download link has been sent

[Cmte. Pena]

Hello Roar,

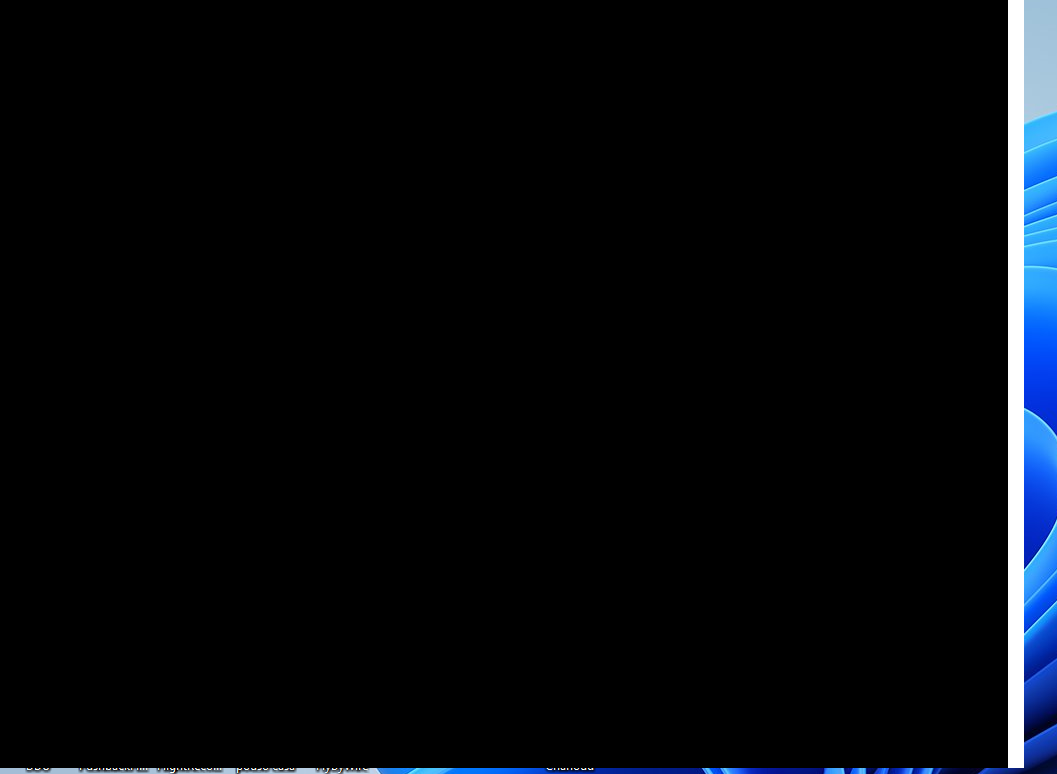

I can´t stablish the connection with the CDU. The screen is open, I can move it to CDU screen, but no data is showed (see the attached file).

Do I have to let this lines in the 737_options.ini?

[SDK]
EnableDataBroadcast=1
EnableDataBroadcast.0=1
EnableCDUBroadcast.0=1

[mvr1918]

SDK lines in 737_Options.ini should look like this:


[SDK]
EnableDataBroadcast=1
EnableCDUBroadcast.0=1


line1 initiate data outputs for all VC variables
line2 initiate CDU screen data output

To move the open screen window to you FMS/CDU hardware monitor use SHIFT-WIN-L or SHIFT-WIN-R.

[Cmte. Pena]

When I change the lines and open the FS, the line of CDU disapear.

When I edit the file with Notepad ++, it goes well, but still no data on the screen.

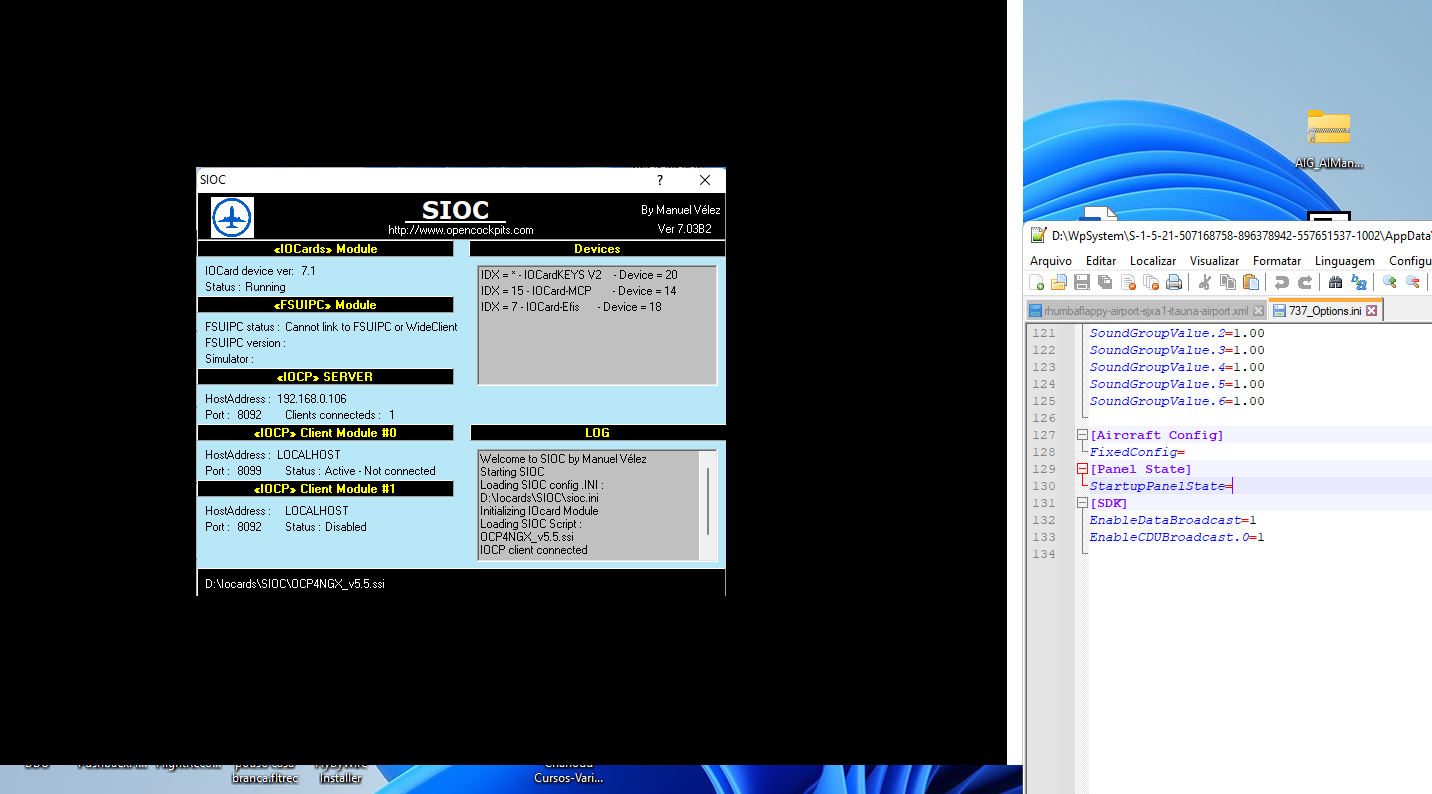

PS; there´s no IDX to CDU in the SIOC. Could this be interfering?

[Cmte. Pena]

Roar,

Updating my problem: now I have the screen on my FMC, but the buttons don't responde.

[mvr1918]

The CDU buttons should work OK if you have a correct configuration file(PMDG B737.ini in SIOC folder). Your SIOC image tells me you have not a correct configuration file that includes the FMC.

Do you have an old FMC module?

[Cmte. Pena]

Do you have an old FMC module?

I think yes.

This is the content of my "PMDG B737.ini" file:

[SIOC]
IOCP_port=8092
IOCP_timeout=4000
Minimized=Yes
toggle_delay=20
[IOCARDS MODULE]
IOCard_disable=No
IOCard_LPT=No
[FSUIPC MODULE]
FSUipcdisable=No
FSUipcRefresh=60
[IOCP CLIENTS MODULES]
IOCPini_delay=3000
IOCPclient0_disable=no
IOCPclient0_host=localhost
IOCPclient0_port=8099
IOCPclient1_disable=yes
IOCPclient1_host=localhost
IOCPclient1_port=8092
[SOUND MODULE]
Sound_disable=Yes
Volume=100
[*]
[PMDG B737]
CONFIG_FILE=OCP4NGX_v5.5.ssi
MASTER=15,5,1,14
MASTER=7,7,1,18
13, Device = 20
