HELP: Input is ok, Output is blink

This is the forum for all your MSFS 2020 - PMDG 737 driver questions and issues
Post Reply
vishido
Posts: 3
Joined: Tue Mar 13, 2018 8:37 pm

HELP: Input is ok, Output is blink

Post by vishido »

Hi,
I have a problem with 737-800 that I don't have with 737-700.
I have EFIS, MCP3.0, NAV, COM, ATC and everything works well in input. If I change altitude it change, like active vhf and all the rest, but nothing is showed into display! This is really strange: it is like input is ok but doesn't show nothing in output.

Can someone help me?

I'm using Oi4FS v.6 and PMDG B737 v7.0 scripts
Attachments
configuration 2
configuration 2

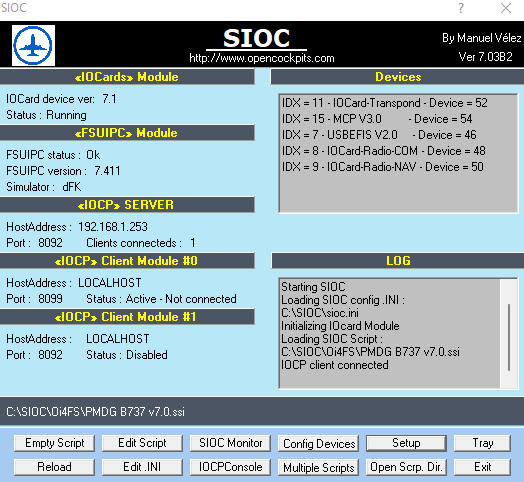

Screenshot 2024-05-03 091132.png (19.92 KiB) Viewed 1251 times
Configuration 1
Configuration 1

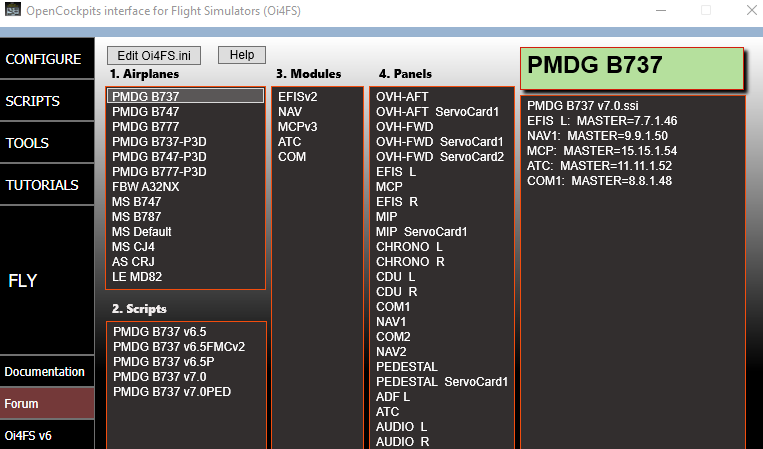

Screenshot 2024-05-03 091036.png (49.04 KiB) Viewed 1251 times
NobbyC_B738
Posts: 44
Joined: Mon Nov 28, 2022 7:38 pm

Re: HELP: Input is ok, Output is blink

Post by NobbyC_B738 »

Please follow Roar’s excellent installation instruction (especially “IMPORTANT PMDG 737 settings that MUST be enabled”) and check in pmdg-aircraft-738 / work folder if you have enabled PMDG’s data broadcast in the 737_Options.ini file

[SDK]
EnableDataBroadcast=1
EnableCDUBroadcast.0=1
EnableCDUBroadcast.1=1

This must be set for all 737 variants
I assume that you have done this previously in the pmdg-aircraft-737 / work folder but forgotten to do the same in the pmdg-aircraft-738 / work folder
Best Regards
Norbert
(EDDH)
